Mkdocs搭建总结(基于mkdocs-material主题)

约 1193 个字 542 行代码 5 张图片 预计阅读时间 11 分钟

View Times


1.摘要

Abstract

Mkdocs 是一个快速、简单且美观的静态网站生成器,特别适用于创建项目文档。 本文详细介绍了如何使用 Mkdocs 和 mkdocs-material 主题搭建和部署个人博客,涵盖了从工具准备、快速搭建、配置自定义功能到自动集成部署的全过程,并提供了相关配置文件和示例代码。 强烈建议查看mkdocs-material官方文档

目前的完成成果

  • 从本地到GitHub的自动构建/部署

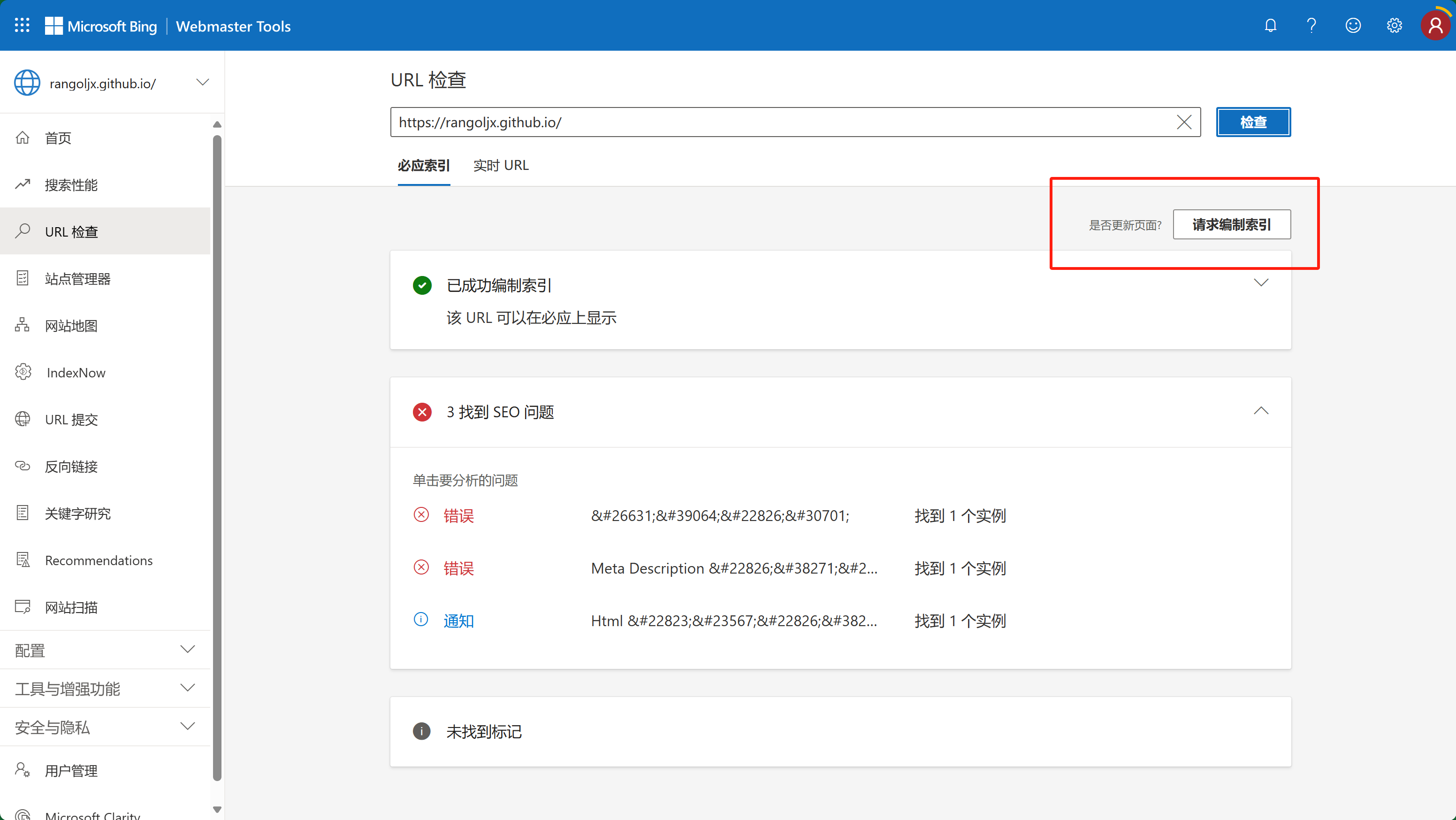

  • 加入Bing搜索引擎
  • Material for MkDocs的配置实现:
    • 导航栏的配置
    • 边框及其目录的配置
    • tags标签的配置
    • 搜索、主题变换、语言、图标的功能
    • GitHub仓库的配置

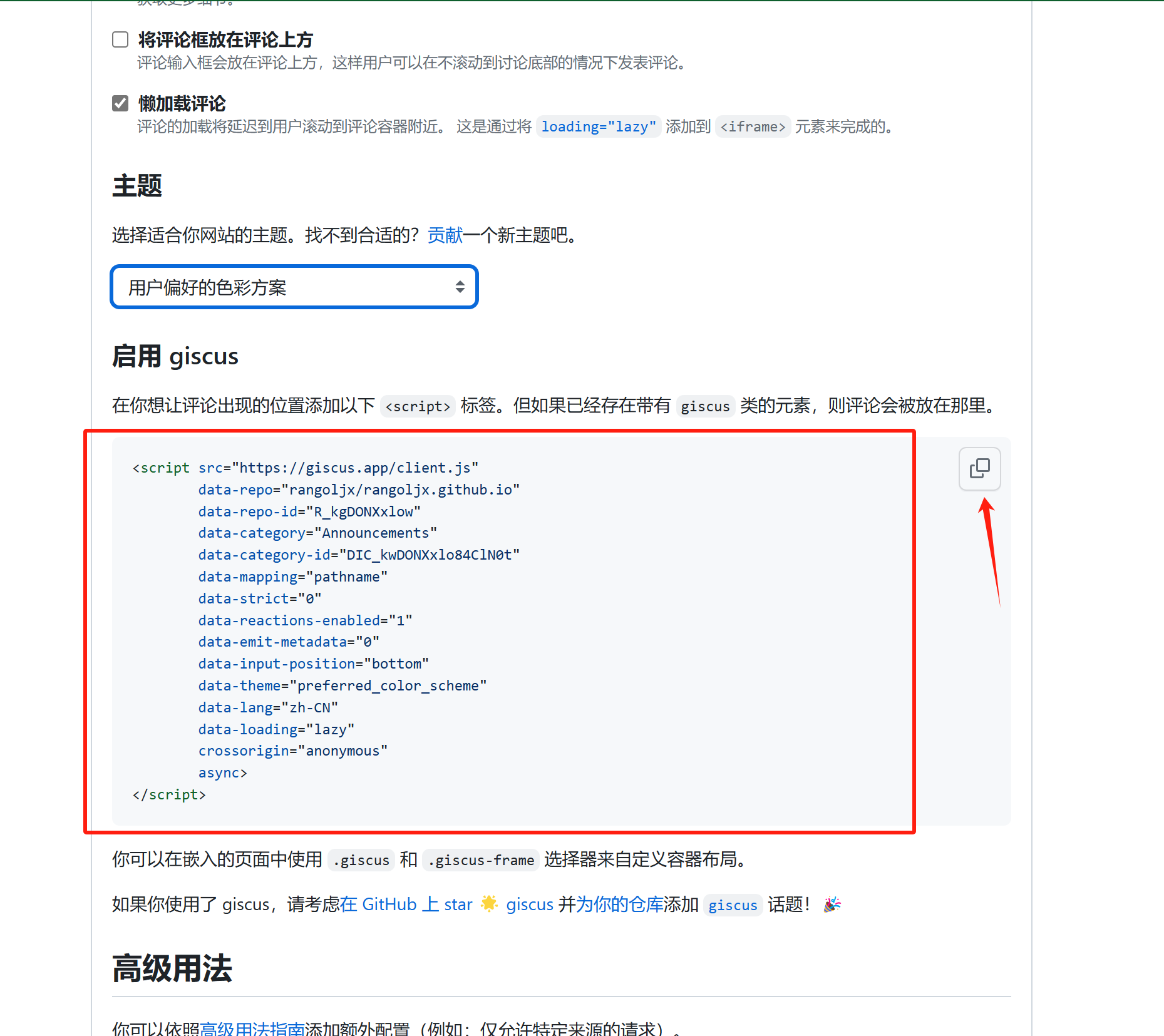

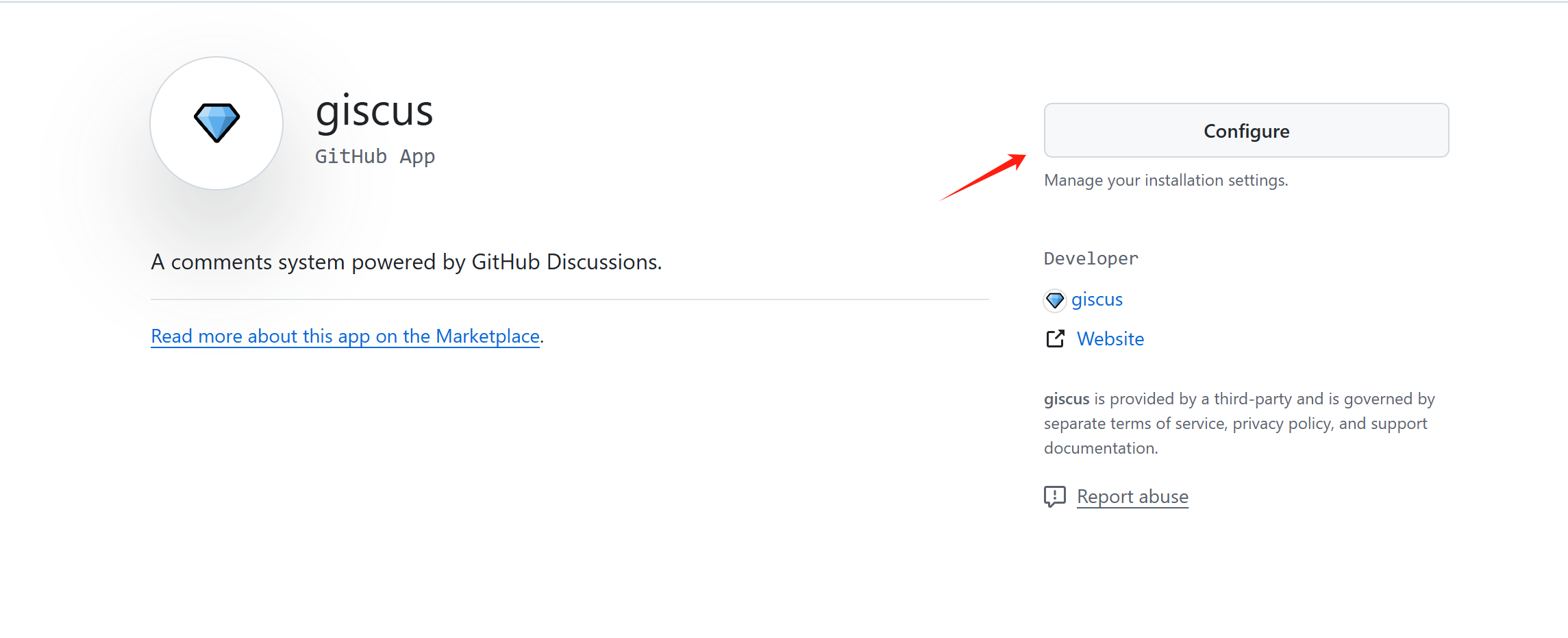

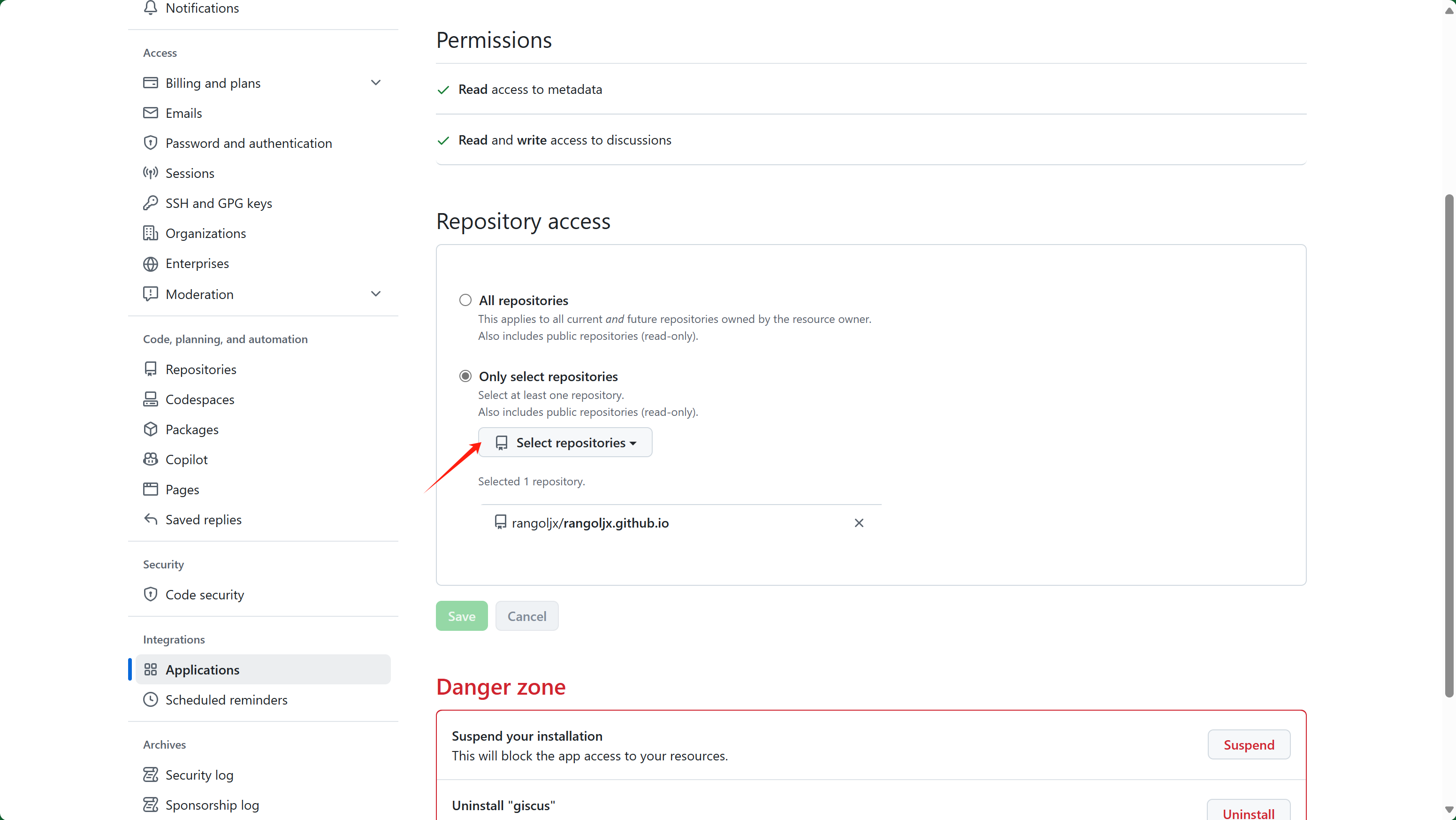

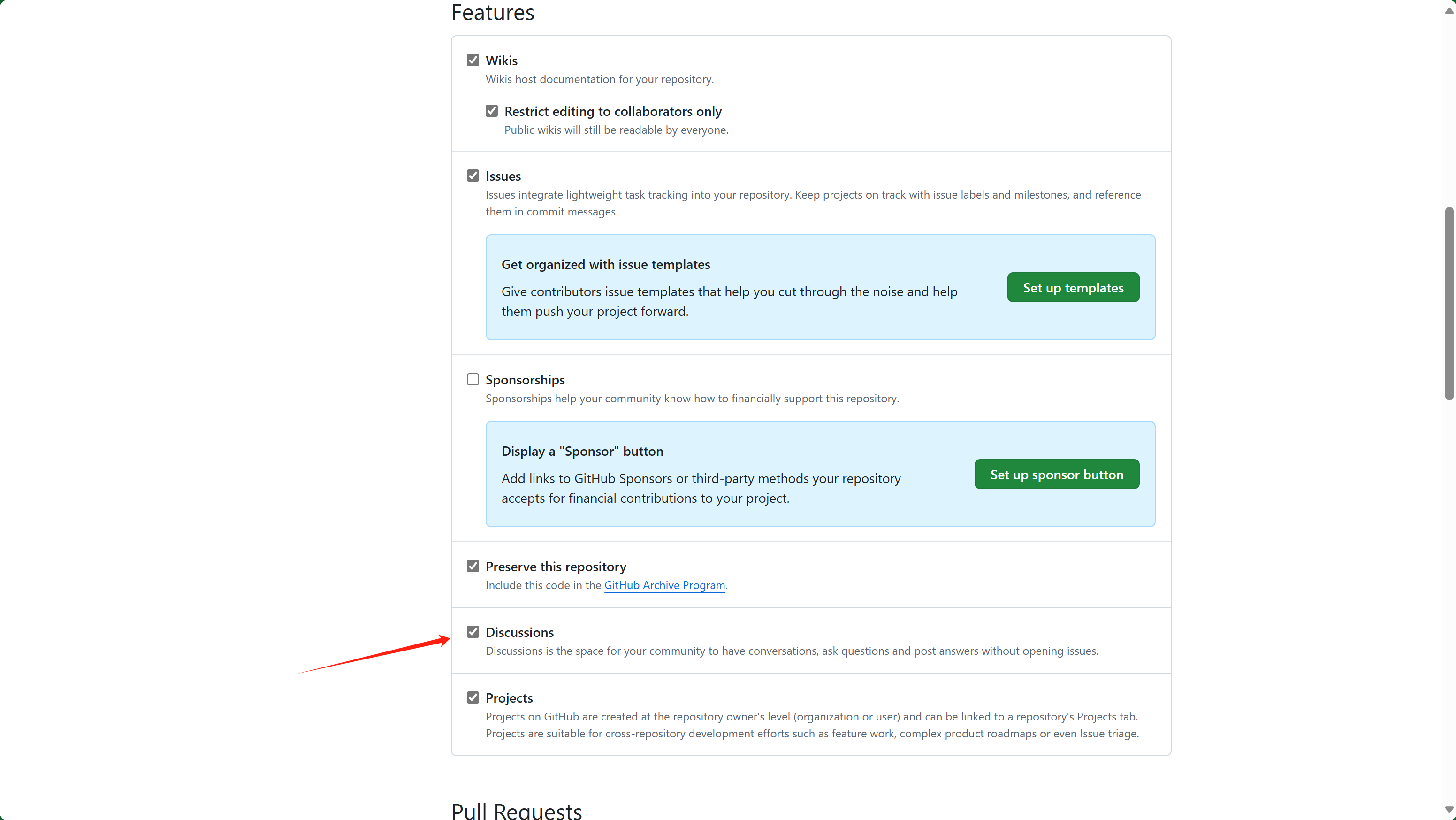

    • 基于giscus评论系统
    • 社交卡片、页面统计功能

2.基本知识

  • 前端的基本知识、JavaScript(高级进阶)
  • Markdown文档的编写技巧
  • Git版本控制
  • GitHub的仓库搭建和管理,GitHub Pages的构建和(自动)部署等
  • python基础及其相关IDE的使用
  • Mkdocs 的基本概念和工作原理

3.工具准备

  • python3.x
  • git
  • vscode
  • 安装Mkdocs及其相关插件(这里已经准备好):
requirements.txt
mkdocs
mkdocs-material
mkdocs-static-i18n
# mkdocs-tags-plugin
mkdocs-glightbox
mkdocs-rss-plugin
mkdocs-minify-plugin
mkdocs_statistics_plugin
mkdocs-git-revision-date-localized-plugin
mkdocs-git-committers-plugin-2
# mkdocs-git-authors-plugin
# mkdocs-glightbox
安装命令:
pip install -r requirements.txt

4.快速搭建

Bash
1
2
3
# 若想更改项目名,主文件夹改名后重新运行该命令即可`mkdocs new xxx`
mkdocs new my-project
cd my-project
YAML
1
2
3
site_name: 我的博客
theme:
  name: material
Markdown
1
2
3
# 欢迎来到我的博客

这是我的博客的主页。
Bash
mkdocs serve
Bash
mkdocs build
Bash
mkdocs gh-deploy

5.完善Material for MkDocs配置及其自定义

给出的配置文件基本都有注释说明,这里不再赘述。可根据需要添加修改,配置文件在仓库可自取.

完整的 mkdocs.yml 配置文件示例

可在项目仓库中获取:mkdocs.yml

mkdocs.yml
YAML
site_name: Rango's Notes  # 网站名称
site_url: https://rangoljx.github.io/   # 网站地址
site_author: Rango              # 网站作者
site_description: Rango's Notes       # 网站描述
# 代码仓库信息
repo_name: rango # 仓库名称
repo_url: https://github.com/rangoljx/rangoljx.github.io/ # 仓库地址
theme:
  name: material        # 主题名称
  custom_dir: docs/overrides          # 自定义目录,用于存放自定义的css、js等文件
  # custom_dir: ./overrides
  language: zh # 默认语言
  keyboard: #配置搜索快捷键
    search: s, /

  favicon: images/mkdocs_favicon.png              # 网站图标
  palette:    # 调色板,用于配置主题的颜色(暗黑模式切换)
    # 可用的主题色:
    # red, pink, purple, deep purple, indigo, blue, light blue,
    # cyan, teal, green, light green, lime, yellow, amber,
    # orange, deep orange, brown, grey, blue grey
    # # Palette toggle for automatic mode
    # - media: "(prefers-color-scheme)"
    #   toggle:
    #     icon: material/brightness-auto
    #     name: Switch to light mode
    - scheme: default # 日间模式
      primary: white # # 主色调
      accent: red # 链接等可交互元件的高亮色# 强调色
      toggle:
        icon: material/weather-night # 图标
        name: 切换至夜间模式 # 鼠标悬浮提示
    - scheme: slate # 夜间模式
      primary: black
      accent: pink
      toggle:
        icon: material/weather-sunny
  font:     # 字体设置
    text: Roboto      # 主要文本字体
    code: Roboto Mono     # 代码字体
  icon: # 一些用到的icon   material/washing-machine-alert
    repo: customsvg/site-author # 修改网站作者仓库图标
    edit: material/pencil-box-multiple  # 修改编辑图标
    view: material/eye    # 修改查看图标
    logo: simple/testcafe      # 网站logo
    previous: fontawesome/solid/angle-left  # 上一页图标
    next: fontawesome/solid/angle-right     # 下一页icon
    admonition: # 告警图标,可自定义
      note: octicons/tag-16
      abstract: octicons/checklist-16
      info: octicons/info-16
      tip: octicons/squirrel-16
      success: octicons/check-16
      question: octicons/question-16
      warning: octicons/alert-16
      failure: octicons/x-circle-16
      danger: octicons/zap-16
      bug: octicons/bug-16
      example: octicons/beaker-16
      quote: octicons/quote-16
  features: # 配置主题特性
  # - navigation.instant #- header.autohide  #自动隐藏
  - navigation.instant.progress #进度指示器
  - navigation.instant.preview #全局自动预览
  - navigation.tabs #顶级部分将呈现在上面视口标题下方的菜单层中,但在移动设备上保持原样
  # - navigation.tabs.sticky #启用粘性选项卡后,导航选项卡将锁定在标题下方,并在向下滚动时始终保持可见
  - navigation.sections
  - navigation.top   # 返回顶部的按钮 在上滑时出现
  - navigation.indexs #使用目录索引
  - navigation.footer  # 启用页脚
  - navigation.tracking #锚点跟踪,地址栏中的 URL 会自动更新为活动锚点,如目录中突出显示的那样。
  # - toc.integrate      # 集成目录于左边
  - navigation.expand #打开默认展开子菜单

  # 搜索主题配置
  - search.suggest # 启用搜索建议
  - search.highlight # 搜索出的文章关键词加入高亮
  - search.share   #搜索分享按钮

  - content.code.annotate # 启用代码注释
  - content.code.copy    # 启用代码复制
  - content.action.edit  # 页面编辑图标
  - content.action.view  # 页面查看图标
  - content.tabs.link   #链接内容选项卡
  - content.tooltips    #改进的工具提示
  - toc.follow    #启用目录的锚点关注后,侧边栏会自动滚动,以便活动锚点始终可见

plugins:
  - search: #默认插件
      # 搜索索引设置
      lang:
        - en
        - zh
      separator: '[\s\-\.]+' # 分词分隔符
      # jieba_dict: dict.txt.small

  - i18n: # 多语言插件
      docs_structure: suffix    #
      fallback_to_default: true # 抄来的,不太懂
      reconfigure_material: true # 抄来的,不太懂
      reconfigure_search: true # 抄来的,不太懂
      languages: # 多语言配置 - 需要小心一点
        - locale: en
          name: English
          build: true # 是否构建
        - locale: zh
          default: true # 默认语言
          name: 简体中文
          build: true
          nav_translations: # 导航栏翻译,不可以有缩进
            HOME: 首页
            Blog: 博客
            ABOUT: 关于
            TAGS: 标签
            Network communication: 网络通信
            Tools & Software Related (Q&A): 工具&软件相关(Q&A)
            Software testing: 软件测试
            Message board: 留言板

  # 统计分析
  - statistics:
      page_statistics: true # 是否在单页中显示统计信息
      page_read_time: true # 是否显示单页预计阅读时间
      page_images: true # 是否显示单页图片张数
      page_check_metadata: # 如果为空,则所有页面都显示;否则包含指定 metadata 才显示单页统计信息
      # 全局统计信息
      # pages_placeholder: \{\{\s*pages\s*\}\} # 页面数占位符
      # words_placeholder: \{\{\s*words\s*\}\} # 字数占位符
      # images_placeholder: \{\{\s*codes\s*\}\} # 图片数占位符

  # 图片预览插件pip install mkdocs-glightbox
  - glightbox:
      # 基础设置
      auto_caption: true              # 自动添加标题
      caption_position: bottom        # 标题位置
      # display_description: true       # 显示描述
      # 触摸设置
      touchNavigation: true          # 触摸导航
      loop: true                    # 循环浏览
      effect: zoom                  # 过渡效果
      # 图片设置
      width: 100%                   # 图片宽度
      height: auto                  # 图片高度
      zoomable: true               # 启用缩放
      draggable: true              # 启用拖动

  # 在底部添加上次更新和创建文档的日期的支持(pip install mkdocs-git-revision-date-localized-plugin)
  - git-revision-date-localized:  # 本地化日期
      enable_creation_date: true  # 启用创建日期
      fallback_to_build_date: true  # 回退到构建日期
      # date datetime iso_date iso_datetime timeago
      type: date  # 日期格式
      exclude:    # 排除不需要显示的页面
        - index.md
        - tags.md
        - about.md
        - message-board.md
  # -----pip install mkdocs-git-committers-plugin-2
  #   替代git-authors,自动获取仓库信息 显示头像
  - git-committers:
      repository: rangoljx/rangoljx.github.io # 仓库地址
      branch: master                # 分支
      # show_line_count: true
      exclude:  # 排除不需要显示的页面
        - index.md
        - tags.md
        - about.md
        - message-board.md
  # ---------pip install mkdocs-git-authors-plugin
  # - git-authors:
  #     show_contribution: true
  #     show_line_count: true
  #     exclude:
  #       - index.md


  # 标签系统pip install mkdocs-tags-plugin
  - tags:
      tags_file: tags.md #标签文件

hooks:  # 钩子
  - hooks/socialmedia.py      # 社交媒体

# 导航设置
nav:
  - HOME: index.md
  - Material for MkDocs:
    - Mkdocs搭建总结: mkdocsbuild/build_mkdocs.md
  - Python:
    - Selenium: python-doc/selenium.md
  - Message board: message-board.md
  - TAGS: tags.md
  - ABOUT: about.md

copyright: Copyright © 2024 Rango   #  自定义版权信息

extra:
  # generator: false  #删除页脚显示“使用 MkDocs 材料制造”
  status: # 用于标记文档的状态,需要在md文档的元数据中添加status字段
    new: new  #新创建的文档
    Recently: Recently  #最近更新的文档
    added: added #新添加的内容
    deprecated: deprecated #弃用的内容
    updated: updated #更新的内容
    in-progress: in-progress #进行中的内容
    draft: draft  #草稿状态的内容
    review: review #正在审核中的内容
    final: final #最终版本的内容
  cdn:
    # 使用国内 CDN
    enable: true
    provider: jsdelivr  # 或 unpkg, cdnjs
    urls:
      katex: https://cdn.jsdelivr.net/npm/katex@0.16.7/dist/katex.min.js
      mermaid: https://cdn.jsdelivr.net/npm/mermaid@9/dist/mermaid.min.js

  # 社交链接,可自定义,在页面底部显示
  social:
    - icon: material/github
      link: https://github.com/rangoljx/rangoljx.github.io/discussions
      name: GitHub
    - icon: material/twitter
      link: https://twitter.com/username
      name: Twitter
    - icon: material/linkedin
      link: https://linkedin.com/in/username
      name: LinkedIn
    - icon: fontawesome/brands/bilibili
      link: https://www.bilibili.com/
      name: Bilibili
    - icon: material/email
      link: mailto:<rangoljx@163.com> #联系方式
      name: 163邮箱
  # 分享功能配置(未实现)
  social_share:
    - platform: twitter
      text: 分享到 Twitter
      icon: material/twitter
    - platform: facebook
      text: 分享到 Facebook
      icon: material/facebook
    - platform: linkedin
      text: 分享到 LinkedIn
      icon: material/linkedin
    - platform: weibo
      text: 分享到微博
      icon: material/sina-weibo
  # Giscus 配置 评论系统

# 对markdown语法的扩展,支持更多的markdown语法
markdown_extensions:
  - meta # 支持在 Markdown 文件头部添加元数据:
  - toc:  # 设置后在右侧边栏可以看到目录
      permalink: true # 启用
      toc_depth: 4          # 目录深度
      separator: "_"        # 标题锚点分隔符
      title: "目录"         # 设置目录标题
      slugify: !!python/object/apply:pymdownx.slugs.slugify
        kwds: {case: lower} # URL 转换规则
  - abbr
  - tables #增强的表格支持
  - pymdownx.inlinehilite # 行内代码高亮
  - pymdownx.snippets     # 代码片段
  - pymdownx.magiclink    # 自动链接
  - pymdownx.critic:      # 编辑标记,突出显示文档中添加、删除或更新的部分
      mode: view    #查看更改
  - pymdownx.tilde      # 删除线
  - pymdownx.mark        # ==标记==
  - pymdownx.caret      # 上标
  - pymdownx.keys       # 键盘按键
  - md_in_html
  # 此配置允许使用简单的语法向所有内联和块级元素添加属性,将任何链接转换为按钮
  - attr_list
  - pymdownx.blocks.caption
  - pymdownx.arithmatex:  # latex支持 数学公式
      generic: true
      # numbering: true #启用公式编号
  - pymdownx.highlight: # 代码块高亮
      anchor_linenums: true
      linenums: true # 显示行号
      auto_title: true # 显示编程语言名称
  - pymdownx.emoji: #添加表情符号支持
      emoji_index: !!python/name:material.extensions.emoji.twemoji
      emoji_generator: !!python/name:material.extensions.emoji.to_svg
      options:
        custom_icons:
          - docs/overrides/.icons
  # 告警信息语法
  - admonition
  - pymdownx.details
  - pymdownx.superfences:
        custom_fences:
        - name: mermaid
          class: mermaid
          format: !!python/name:pymdownx.superfences.fence_code_format
  - def_list
  - pymdownx.tasklist: #任务列表支持
      custom_checkbox: true    # 自定义复选框样式
      clickable_checkbox: true # 可点击
  - pymdownx.tabbed:    # 标签页样式
      alternate_style: true

extra_javascript:
  # KaTeX 数学公式
  - javascripts/katex.js
  - javascripts/katex-auto.js
  - javascripts/katex-numbering.js
  - https://cdnjs.cloudflare.com/ajax/libs/KaTeX/0.16.7/katex.min.js
  - https://cdnjs.cloudflare.com/ajax/libs/KaTeX/0.16.7/contrib/auto-render.min.js
  # Mermaid 图表
  - https://unpkg.com/mermaid@9/dist/mermaid.min.js
  - https://busuanzi.ibruce.info/busuanzi/2.3/busuanzi.pure.mini.js
  # 修改页面背景特效
  - javascripts/extra.js
  - javascripts/feedback.js

extra_css:
  - https://cdnjs.cloudflare.com/ajax/libs/KaTeX/0.16.7/katex.min.css
  - stylesheets/extra.css
项目基本目录
|   .gitignore    # 需要忽略push的文件,如site/
|   mkdocs.yml    # 配置文件
|   push-mkdocs.bat
|   requirements.txt
|
+---.github       # 添加Github Actions工作流ci.yml,完成自动部署
|   \---workflows
|           ci.yml
|
+---Bing-Webmaster-Tool     # 加入Bing搜索引擎所需
|       50323f9602a64903a759f76a86741635.txt
|       BingSiteAuth.xml
|       IndexNow.yml
|
+---docs                  # 博客文件
|   |   about.md
|   |   index.md
|   |   message-board.md
|   |   tags.md
|   |
|   +---blog
|   |   |   index.md
|   |   |
|   |   \---posts
|   +---images        # 自定义网站图标,配置文件16行---favicon: images/mkdocs_favicon.png
|   |       mkdocs_favicon.png
|   |
|   +---javascripts     # 可自定义,额外的js脚本
|   |       extra.js
|   |       feedback.js
|   |       katex-auto.js
|   |       katex-numbering.js
|   |       katex.js
|   |       mathjax.js
|   |
|   +---mkdocsbuild
|   |       build_mkdocs.md
|   +---overrides     # 复写主题
|   |   +---.icons    # 使用自定义图标
|   |   |   \---customsvg
|   |   |           site-author.svg
|   |   |           site_author.jpg
|   |   |           tendao.svg
|   |   |           testlink.svg
|   |   |
|   |   \---partials
|   |           comments.html   # 基于giscus配置评论功能
|   |           main.html
|   +---stylesheets   # 额外样式
|   |       extra.css

配置自定义图标

  1. 在docs文件夹下添加overrides/.icon/xxx文件夹,xxx可自定义,.icon不可更改变换;
  2. mkdocs.yml中添加如下配置:

    theme:
      custom_dir: docs/overrides

  3. 将准备好的.svg图标放入overrides/.icon/xxx文件夹,然后在需要的地方进行引用即可(引用时不需要后缀名),如修改网站作者仓库图标repo,mkdocs.yml配置42行:

    1
    2
    3
    theme:
      icon:
        repo: customsvg/site-author

  4. 内置表情和图标查找

更多配置参考:更改徽标和图标

配置giscus评论

官网有详细的说明Giscus集成评论系统

总结归纳就是:

  1. mkdocs.yml中添加如下配置,然后创建文件夹及其文件docs\overrides\partials\comments.html

    theme:
      custom_dir: docs/overrides


  2. 安装并配置Giscus:

    1. 访问地址:https://github.com/apps/giscus 进行安装(这里以及装好了): install-giscus
    2. 然后点击Configure进行配置,选择你部署的仓库: config-giscus
    3. 进入所选的仓库,点击settingsGeneral页面下拉找到Features,勾选Discussions open-Discussions
    4. 打开 https://giscus.app/zh-CN ,填好相关配置后就可以得到相应的js代码: enable-giscus
    5. 将获取的代码复制到comments.html中,如下替换高亮部分
    comments.html
    <!-- docs/overrides/partials/commets.html -->
    {% if page.meta.comments %}
      <h2 id="__comments">{{ lang.t("meta.comments") }}</h2>
      <!-- Insert generated snippet here -->
      <script src="https://giscus.app/client.js"
              data-repo="rangoljx/rangoljx.github.io"
              data-repo-id=""
              data-category-id=""
              data-mapping="pathname"
              data-strict="0"
              data-reactions-enabled="1"
              data-emit-metadata="1"
              data-input-position="bottom"
              data-theme="preferred_color_scheme"
              data-lang="zh-CN"
              crossorigin="anonymous"
              async>
      </script>
      <!-- Synchronize Giscus theme with palette -->
      <script>
        var giscus = document.querySelector("script[src*=giscus]")

        // Set palette on initial load
        var palette = __md_get("__palette")
        if (palette && typeof palette.color === "object") {
          var theme = palette.color.scheme === "slate"
            ? "transparent_dark"
            : "light"

          // Instruct Giscus to set theme
          giscus.setAttribute("data-theme", theme)
        }

        // Register event handlers after documented loaded
        document.addEventListener("DOMContentLoaded", function() {
          var ref = document.querySelector("[data-md-component=palette]")
          ref.addEventListener("change", function() {
            var palette = __md_get("__palette")
            if (palette && typeof palette.color === "object") {
              var theme = palette.color.scheme === "slate"
                ? "transparent_dark"
                : "light"

              // Instruct Giscus to change theme
              var frame = document.querySelector(".giscus-frame")
              frame.contentWindow.postMessage(
                { giscus: { setConfig: { theme } } },
                "https://giscus.app"
              )
            }
          })
        })
      </script>
    {% endif %}

  3. 如何使用:在你想插入评论的页面的元数据添加:comments: true

    example.md
    1
    2
    3
    ---
    comments: true  #默认不开启评论
    ---


6.把个人Web录入到各大搜索引擎

7.自动集成/部署至Github Pages

通过 GitHub Actions 实现 Mkdocs 项目的自动集成和部署,并添加自动IndexNow工作流。

  1. 在项目根目录(我的与仓库同步)创建 .github/workflows/ci.yml 工作流文件,添加以下内容:

    YAML
    name: Deploy MkDocs to GitHub Pages
    permissions:
      contents: write
    on:
      push:
        branches:
          - master  # 监听 main 分支的推送事件
    jobs:
      build-and-deploy:
        runs-on: ubuntu-latest
        steps:
        - name: Checkout code
          uses: actions/checkout@v2  # 检出代码
          # 访问接触特定文件的最后一次提交才能检索日期
          with:
            fetch-depth: 0
        - name: Set up Python
          uses: actions/setup-python@v2
          with:
            python-version: 3.12  # 设置 Python 版本
        - name: Install dependencies
          run: |
            pip install -r requirements.txt  # 安装 相关插件
            pip cache purge
        - name: Build the MkDocs site
          run: mkdocs build  # 构建 MkDocs 网站
          # 将 BingSiteAuth.xml 添加到根目录
        - name: Add BingSiteAuth.xml to root directory
          run: cp -f ./Bing-Webmaster-Tool/BingSiteAuth.xml ./site
        - name: Add indexnow to root directory
          run: cp -f ./Bing-Webmaster-Tool/50323f9602a64903a759f76a86741635.txt ./site
        - name: Deploy to GitHub Pages
          uses: peaceiris/actions-gh-pages@v3
          with:
            github_token: ${{ secrets.GITHUB_TOKEN }}
            publish_dir: ./site  # mkdocs 构建输出目录为 site
        - name: Copy IndexNow workflow after deploy
          env:
            PERSONAL_ACCESS_TOKEN: ${{ secrets.PERSONAL_ACCESS_TOKEN }}
          run: |
            git config --global user.email "rangoljx@qq.com"
            git config --global user.name "rango"
            git clone --branch=gh-pages https://github.com/rangoljx/rangoljx.github.io.git gh-pages
            cd gh-pages
            mkdir -p .github/workflows
            cp -f ../Bing-Webmaster-Tool/IndexNow.yml .github/workflows/
            git add .github/workflows/IndexNow.yml
            git commit -m "Add IndexNow workflow"
            git push https://x-access-token:${PERSONAL_ACCESS_TOKEN}@github.com/rangoljx/rangoljx.github.io.git

  2. 创建 Bing-Webmaster-Tool/IndexNow.yml 文件,添加以下内容:

    YAML
    name: "IndexNow to bing"
    on:
      workflow_run:
        workflows: ["pages-build-deployment"]
        types:
          - completed
        branches:
          - gh-pages
      schedule:
        # 每3天的 UTC 时间 04:00 运行一次
        - cron: '0 4 */3 * *'
    jobs:
      check-and-submit:
        runs-on: ubuntu-latest
        steps:
          - name: submit-to-bing
            uses: bojieyang/indexnow-action@v2
            with:
              sitemap-location: "https://rangoljx.github.io/sitemap.xml"
              endpoint: "www.bing.com"
              since: 3
              since-unit: "day"
              limit: 10
              key: ${{ secrets.INDEXNOW_KEY }}
              key-location: ${{ secrets.INDEXNOW_KEY_LOCATION }}

  3. 配置 GitHub Secrets:

    • INDEXNOW_KEY: 你的 IndexNow API 密钥
    • INDEXNOW_KEY_LOCATION: 你的 IndexNow API 密钥文件的位置,例如 https://rangoljx.github.io/50323f9602a64903a759f76a86741635.txt
  4. 配置 push-mkdocs.bat 文件,添加以下内容:

    Batchfile
    REM filepath: /d:/VSCODE/rangoljx.github.io/push-mkdocs.bat
    @REM @echo off
    cd /d "D:\VSCODE\rangoljx.github.io"
    set commitDate=%date:~0,4%-%date:~5,2%-%date:~8,2%
    set /p commitMessage="Please enter the submit info:"
    git add .
    git commit -m "autocommit: %commitMessage% - %commitDate%"
    @REM git commit -m "auto-commit - %commitDate%"
    git push -u origin master
    @REM git push -u origin master --force

  5. 每次推送到 master 分支时,GitHub Actions 将自动构建并部署你的 Mkdocs 项目到 GitHub Pages.

  6. 每次 gh-pages 分支的部署完成后,GitHub Actions 将自动提交新的 URL 到 Bing。

8.完结撒花

  • 自动构建/部署根据个人思路搭建配置,每个人不同,也可创建不同仓库进行存放和构建部署.
  • 详细功能介绍可查阅 Mkdocs-Material 和相关插件的官方文档,markdown写作技巧等.

评论
